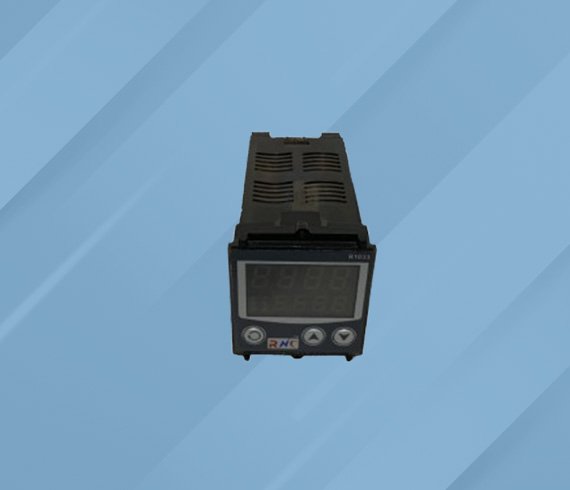

Digital Temperature Controller (PID Controller) Model No: - R-1033
Digital Temperature Controller (PID Controller)
Model No: - R-1033
RNC’s Digital Temperature Controller ensures precise temperature regulation with reliable performance for industrial and commercial applications.
Applications
- Temperature controllers are used in ovens and in heat-treating applications within furnaces, ceramic kilns, boilers, Acid Baths, Chemical Reactors, heat exchangers & also used in Chemical, Pharmaceuticals, Engineering & Metal Industries.
Product Description
- Model No:- R1033
- Front Panel Size:- 42x42 MM
- Resolution : RTD-PT-100 - 1°C or 0.1°C, K Type -1°C, J Type - 1°C, R Type - 1°C, S Type - 1°c, Analog - Selectable
- Accuracy: Better than ± 0.5 % full scale.
- Control Type : On - Off & PID
- Control Logic : Heating (Reverse ) or Cooling (Direct)
- Compensation : Automatic Cold junction
- Relay output : up to 2 nos. Of Relay (5 Amp.1 CO)
- Relay output : PID action for First Relay Only
- Power Supply : 230VAC± 10 % 50Hz
- Analog Output : 4-20 Ma control or Retransmission output.

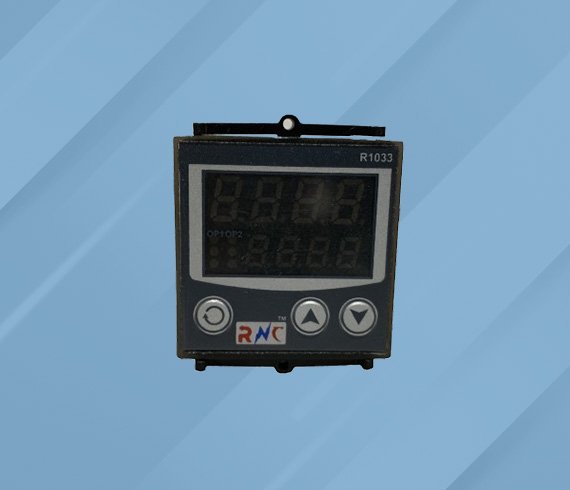

- Display: R1033-4 Digits RED + 4 Digits GREEN Seven Segment Display
- PID Parameter : Auto Tuning or Manual Tuning
Proportional Band Integral Time Derivative Time.
